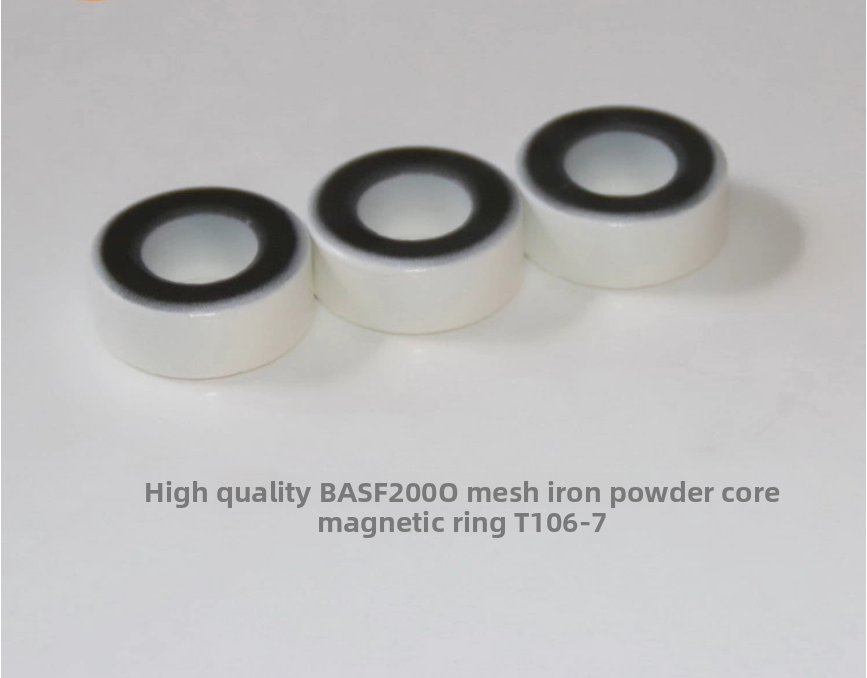

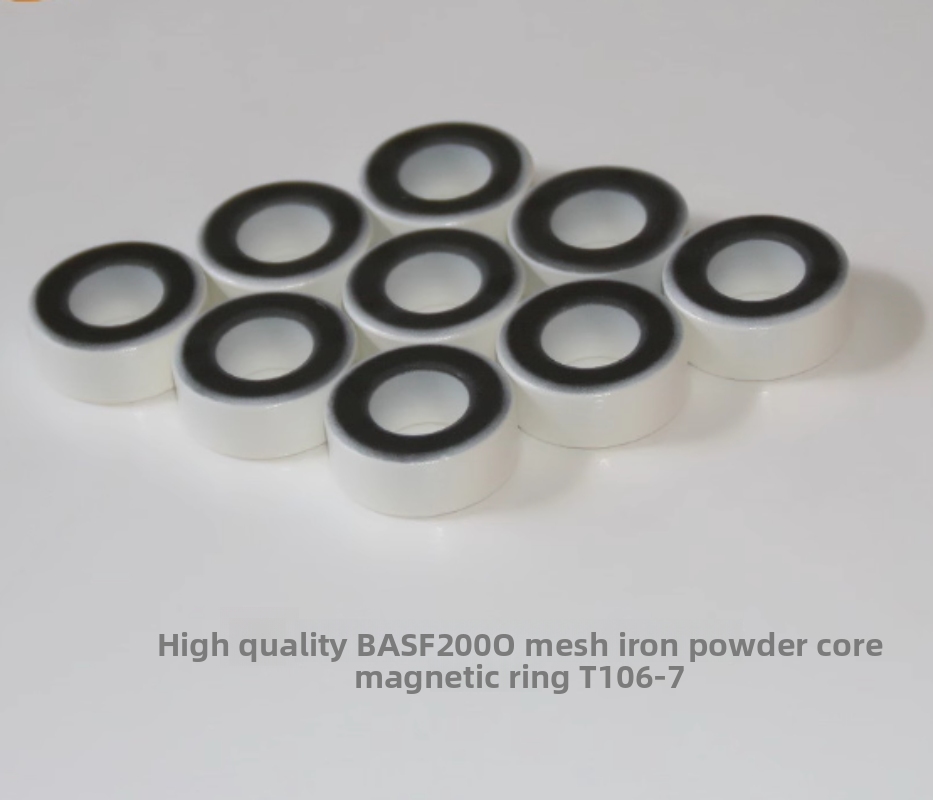

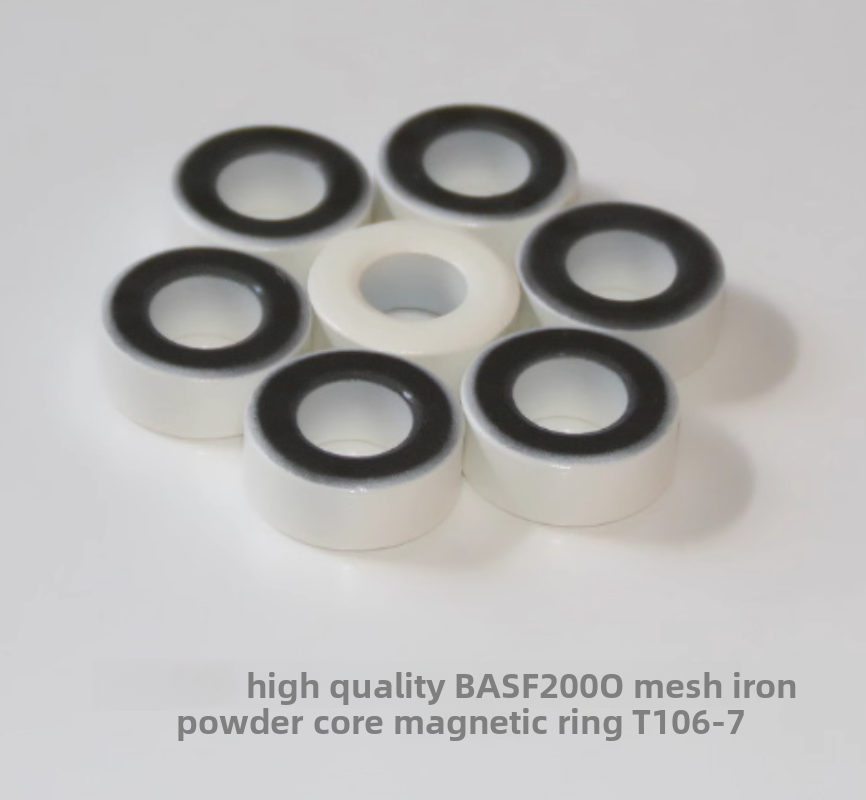

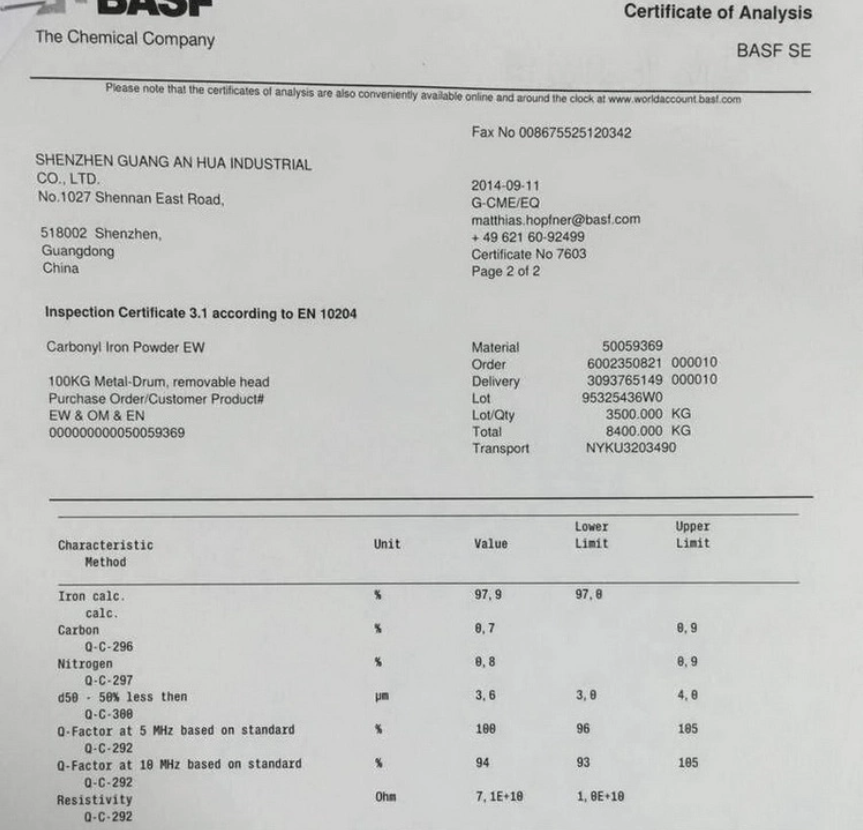

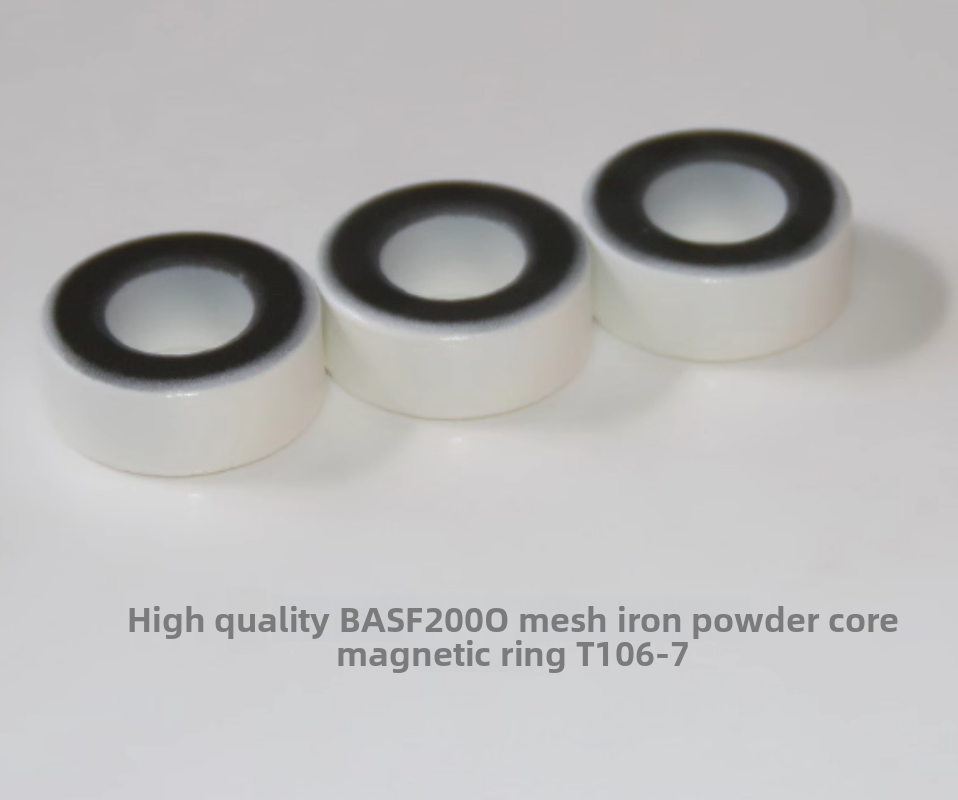

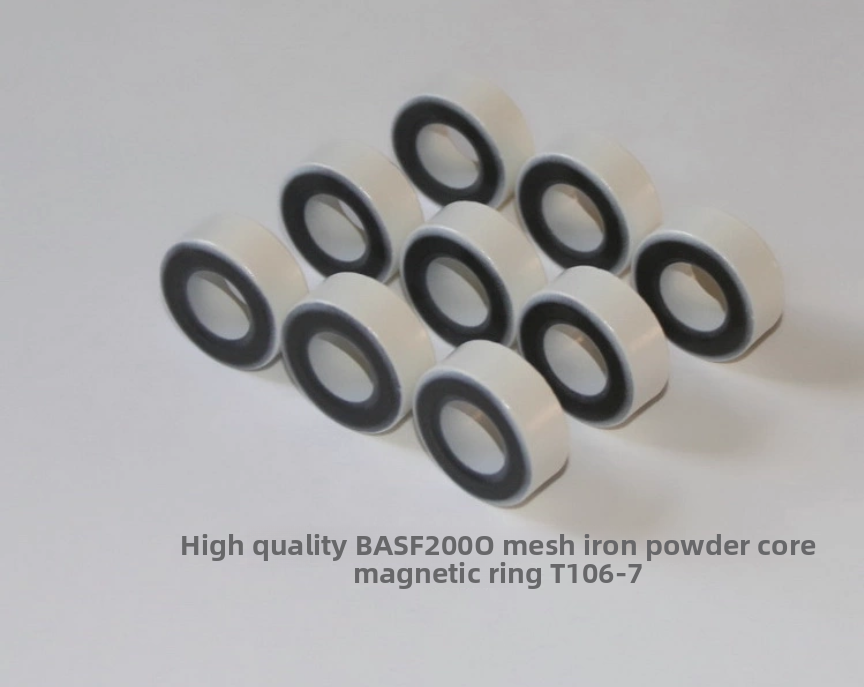

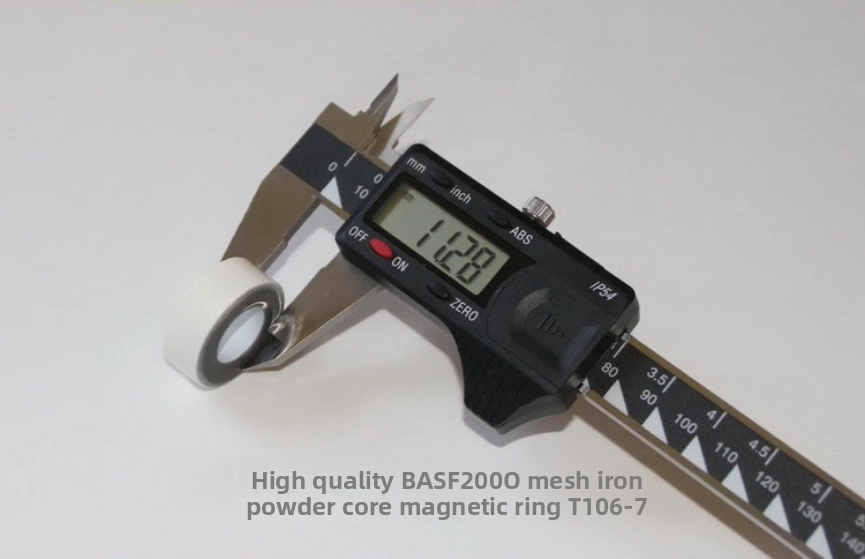

T106-7 imported magnetic ring, high-frequency low loss magnetic powder core, produced using imported powder from BASF in Germany.

T106-7 imported magnetic ring is a high-frequency magnetic component made of high-purity and high-performance ferromagnetic powder.

The "T106-7" in its name is the industry standard model code, which includes information on its dimensions and material properties.

Model code analysis:

T: Represents a circular shape.

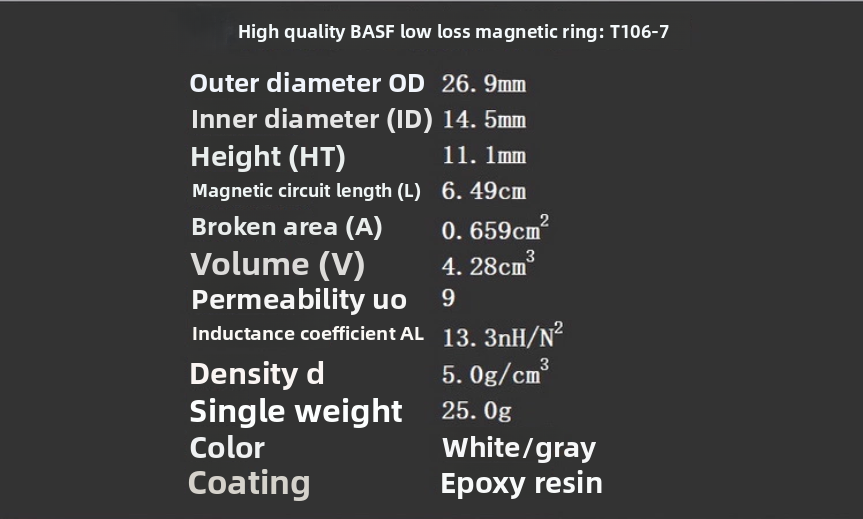

106: Represents size specifications. Usually refers to the combination of outer diameter x inner diameter x height. For T106, its typical dimensions are approximately:

Outer diameter: 26.9 mm

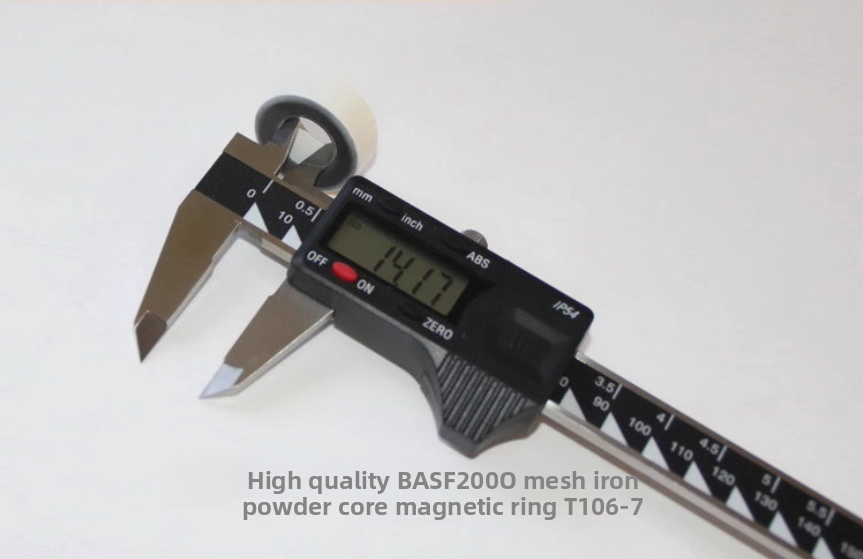

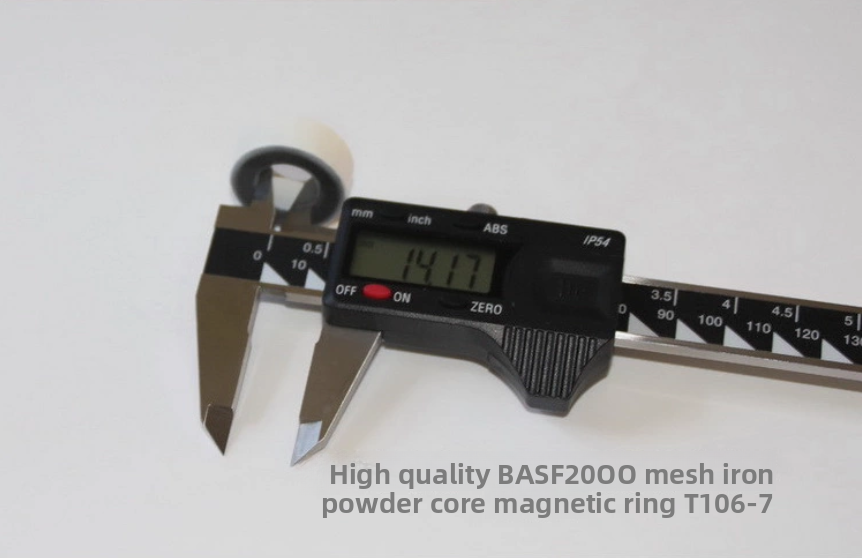

Inner diameter: 14.7 mm

Height: 11.2 mm

(Please note that there may be slight differences among different manufacturers, and it is recommended to refer to the specific data manual for accuracy)

-7: Represents the color code of the material. -7 corresponds to yellow/white, which is a specific formula for magnetic powder core material with the following key characteristics:

Initial magnetic permeability: approximately 75 µ (relative magnetic permeability)

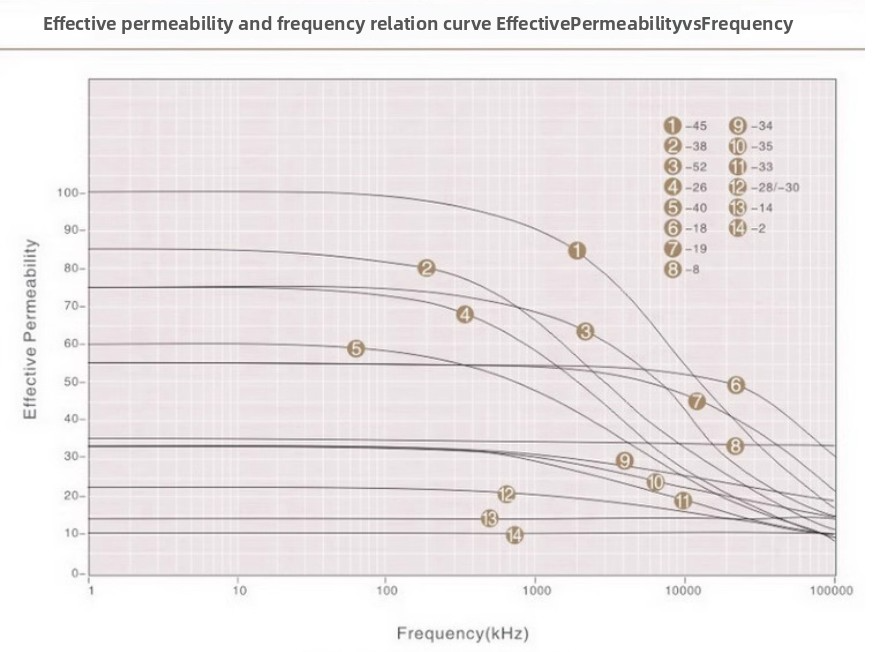

Operating frequency: Very suitable for high-frequency applications (tens of kHz to several MHz).

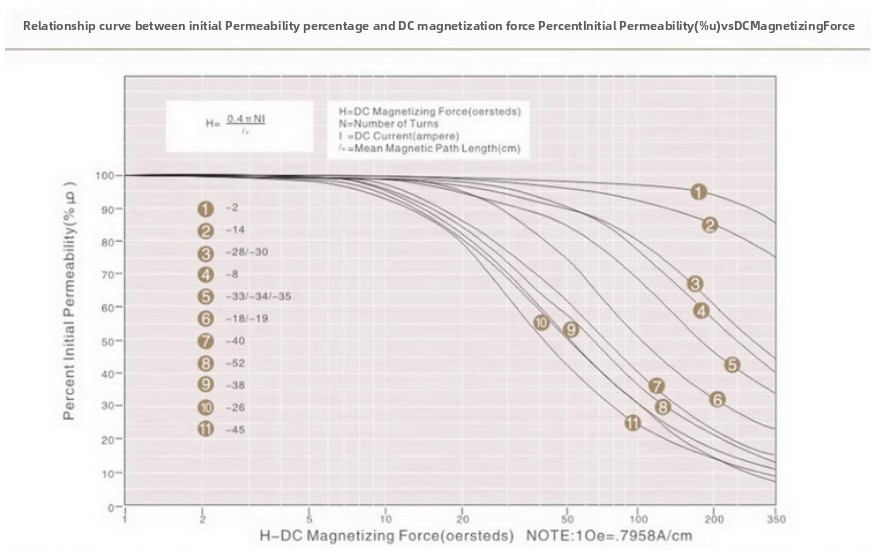

Saturated magnetic flux density: relatively high, able to withstand large DC bias currents without saturation.

Main application areas

Due to its excellent performance, T106-7 magnetic rings are commonly used for:

Switching power supply: used as a boost inductor in PFC (power factor correction) circuits, energy storage and filtering inductor in various DC-DC converters (such as Buck, Boost, flyback).

High frequency inverter/frequency converter: used for output filtering and energy buffering.

EMI filtering inductor: Although -7 material is more commonly used for power inductors, with appropriate winding, it can also be used to suppress conducted interference.

High frequency transformer: In some situations where high saturation characteristics are required, it can also be used as a transformer core.

In the field of new energy: photovoltaic inverters, vehicle chargers, etc.

T106-7 imported magnetic ring is a high-performance power inductor magnetic core manufactured based on high-quality BASF powder.

It has become an indispensable key component in the design of modern high-efficiency and high power density switching power supplies due to its high frequency,

low loss, high saturation strength, and excellent DC bias capability.

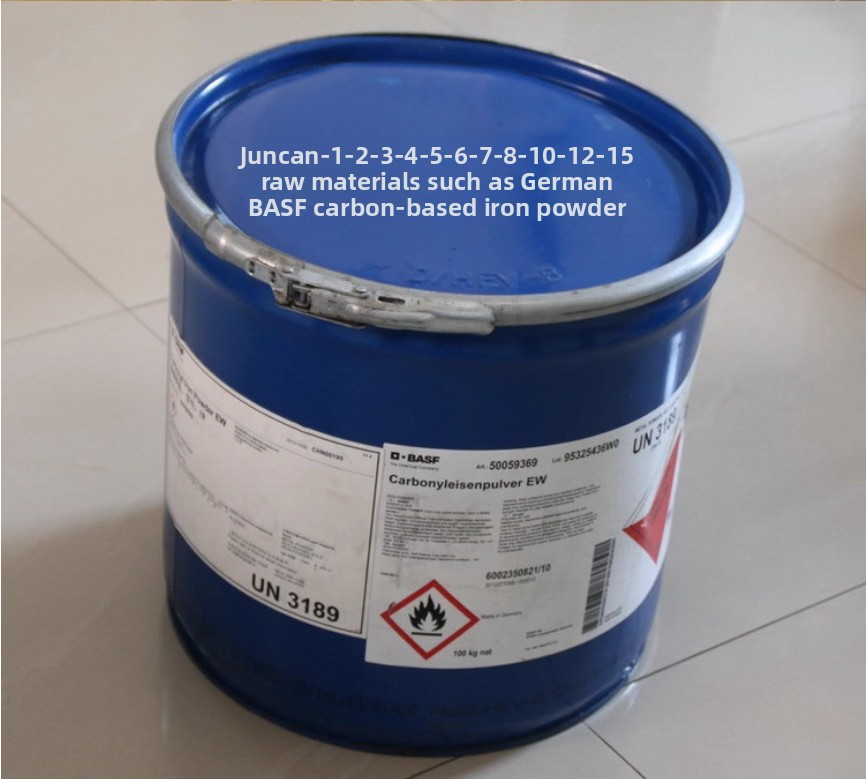

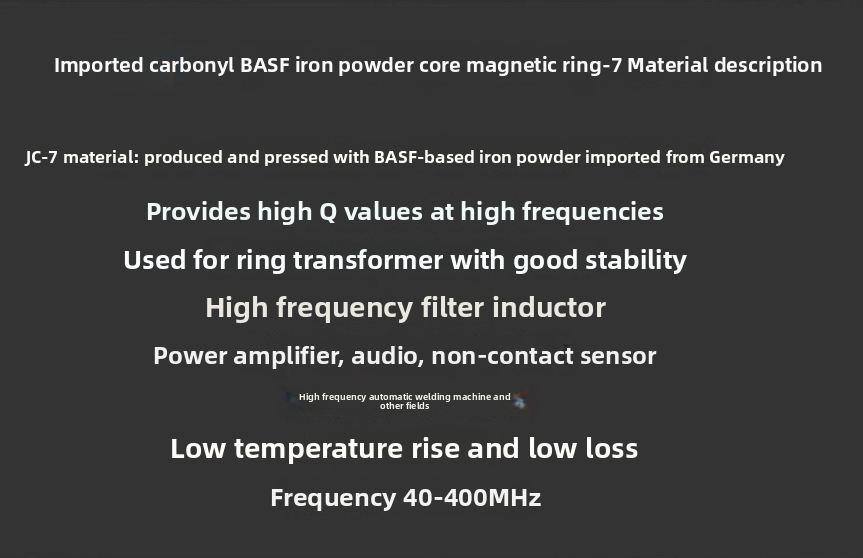

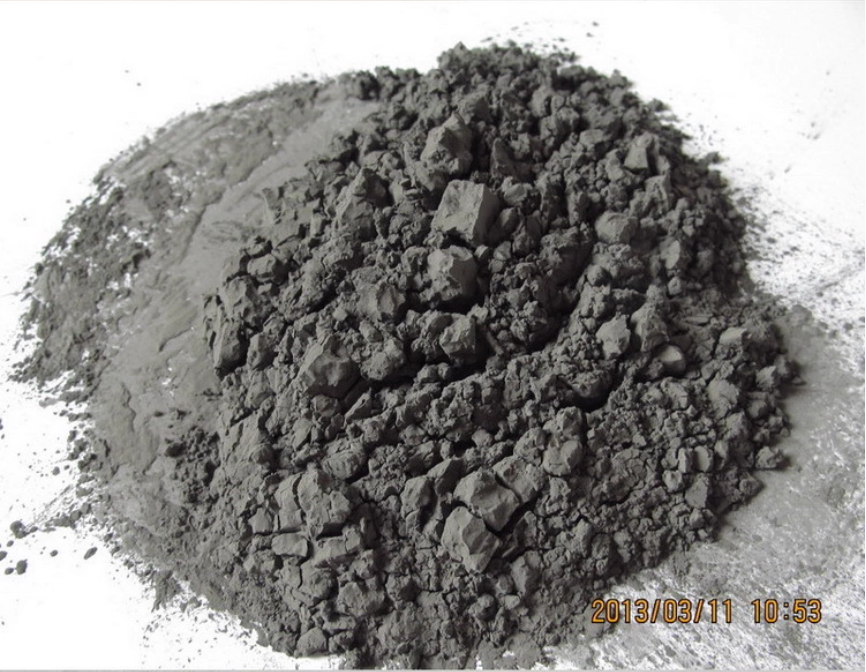

The imported iron powder magnetic core produced by BASF ultrafine iron powder imported from Germany is our company's best-selling product. Produced using 100% BASF iron powder and formed through a special process formula, the product has good tensile strength! It is a highly stable magnetic material in high-frequency electronic components, which can be used as high-frequency and very high frequency inductors, broadband transformers, RF impedance matching devices, filters, and anti electromagnetic interference (EMI) devices to improve the electromagnetic compatibility characteristics of the whole machine. Due to its good temperature resistance and low losses at high frequencies and large currents, it has unparalleled advantages over other materials.
