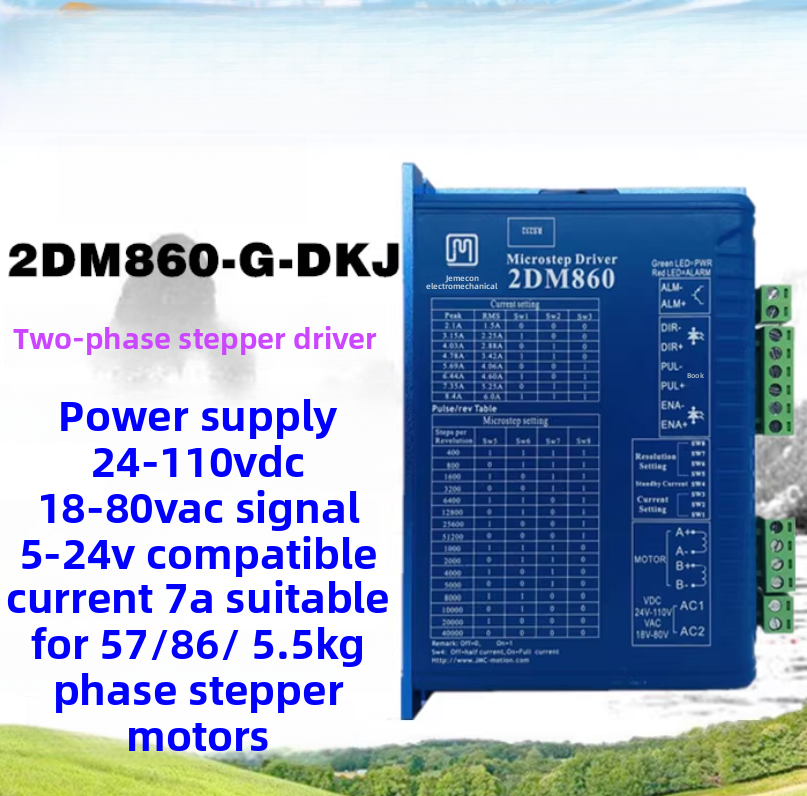

2DM860-G-DKJ Jiemeikang 86 stepper motor driver laser engraving machine DC motor controller

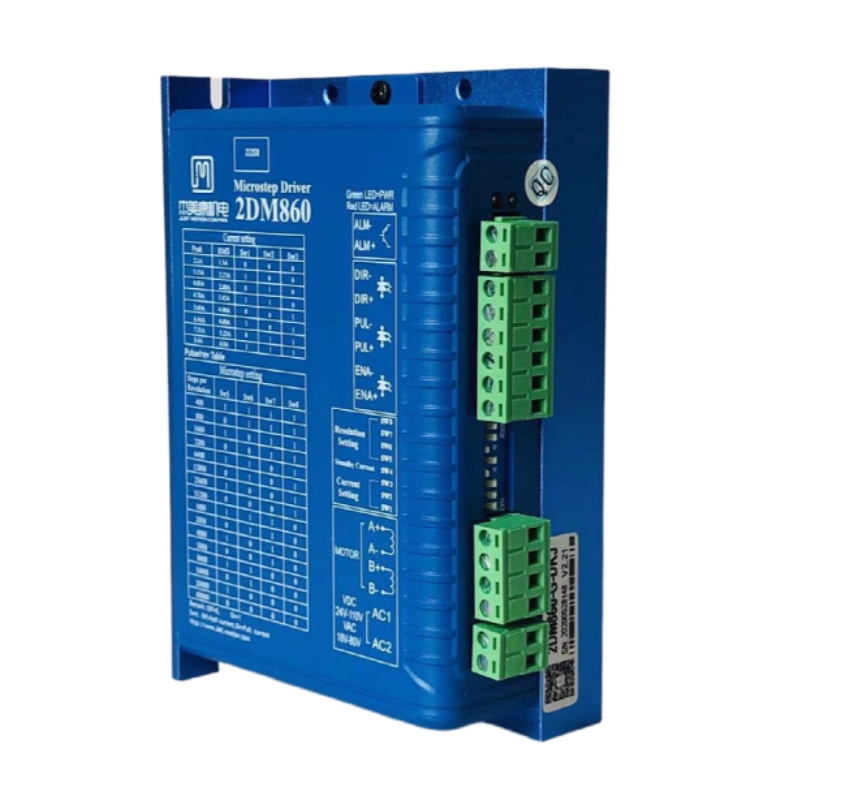

Digital stepper driver 2DM860-G-DKJ

Main Features：

1: Brand new 32-bit DSP technology, optically isolated differential signal input (26LS32), low vibration noise

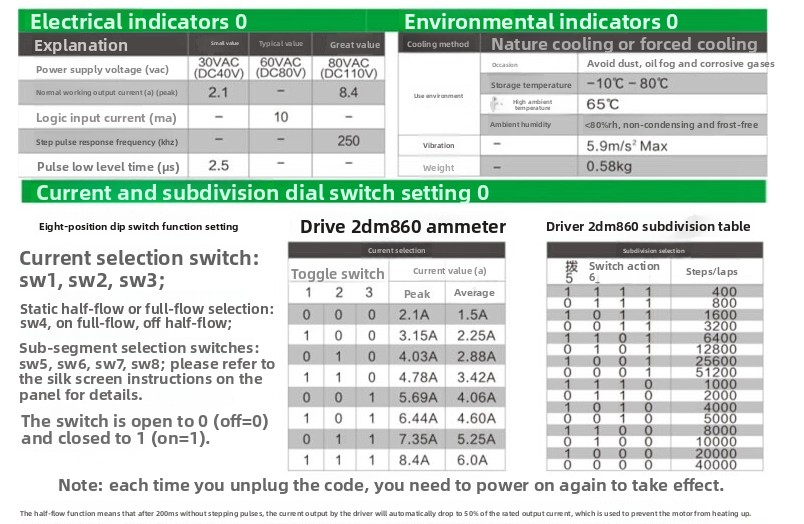

2: The subdivision setting range is 2-128, with built-in 500 fold high-frequency subdivision (selected subdivision value)

3: It can drive a 4.6.8 line two-phase stepper motor, and the current setting can be directly selected at the rated value

4: When stationary, the current automatically halves, and the pulse response frequency can reach up to 250KHZ

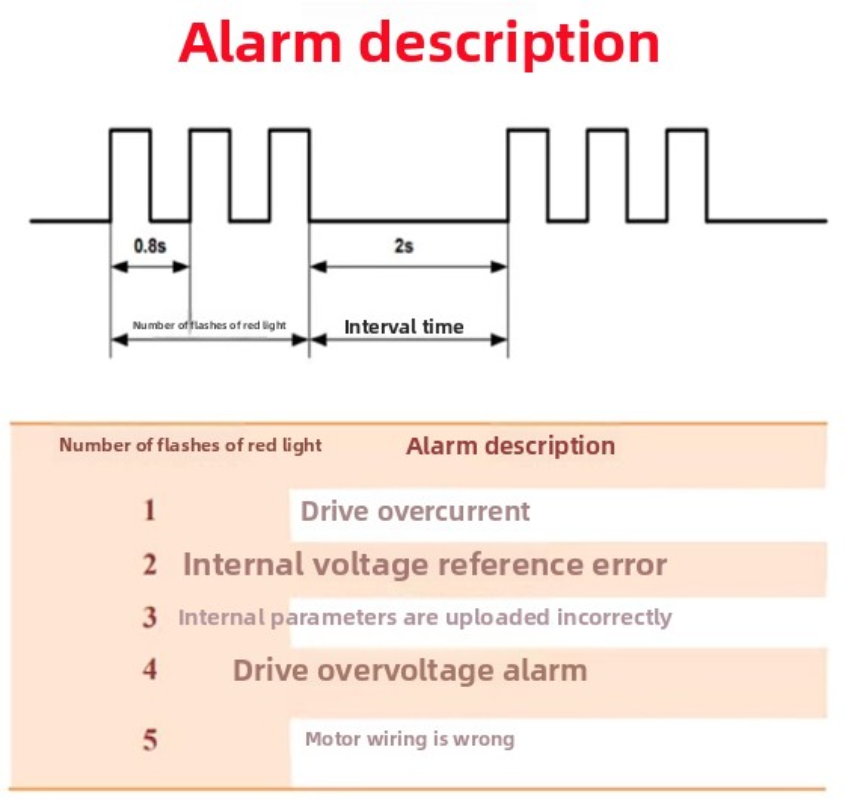

5: Equipped with overvoltage, undervoltage, short circuit and other protection functions, alarm output function I/O port, alarm clearing input ENA

Performance Profile：

2DM860 is a newly launched digital stepper motor driver by Jiemeikang Company, which adopts new 32-bit DSP control technology. Users can set 25600

The internal subdivision and any multiple current values within the rated current range, the driver adopts built-in subdivision technology to improve the smoothness and stability under low subdivision

Noise. The automatic setting function is integrated inside the driver, which can automatically adjust the operating parameters for different motors and maximize the performance of the motors.
